Produktdetails:
|

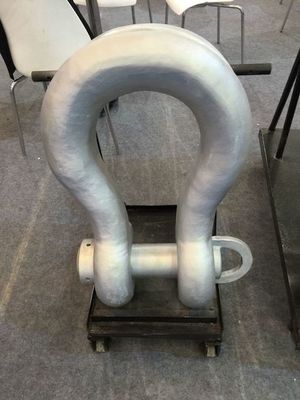

| Schlüsselwort: | Breiter Bügelschäkel mit Sicherheitsbolzen, hohe Tragfähigkeit, mit vergrößertem Bügelradius, um die | Material: | Legierter Stahlguss, legierter Stahl geschmiedet, vergütet |
|---|---|---|---|
| Beenden Sie.: | Fesselbogen und gemaltes Silber feststecken | Sicherheitsfaktor: | 5:1 |
| WILLE: | 300 Tonnen | Standards: | ASME B30.26-2004 |
| Zollämter: | OEM oder ODM | Verpackung: | Karton + Palette, Holzkiste oder Gewohnheit |
| Art des Bügels: | Bogenschäkel | Bolzenartig: | Sicherungsbolzen mit Mutter und Splint |
| Hervorheben: | Anpassungsfähiger Schnürbogen,Silberfarbene Schnürbogenart,ASME B30.26 Typ der Schnürbogenvorrichtung |
||
| Arbeiten Belastung (t) |
Größemm)
|
Gewicht (in kg) |
|||||||||||
| Code | |||||||||||||
| Eine | B | C | D | E | G | H | J | K | P | R | |||
| +/-6.35 | +/- 0.5 | ||||||||||||
| KWB-7 | 7 | 263 | 31.8 | 17.5 | 22.4 | 46.2 | 31.8 | 90.4 | 40.6 | 31.8 | 104 | 149 | 1.8 |
| KWB-12.5 | 12.5 | 137 | 42.9 | 23.4 | 28.7 | 60.5 | 34.8 | 118.0 | 54.1 | 41.4 | 140.0 | 194.0 | 4.5 |
| KWB-18 | 18 | 170.0 | 51.6 | 29.5 | 35.1 | 68.3 | 38.1 | 148.0 | 63.5 | 50.8 | 172.0 | 238.0 | 6.8 |
| KWB-30 | 30 | 195 | 60.2 | 35.1 | 41.4 | 88.9 | 44.5 | 176.0 | 79.5 | 63.5 | 216.0 | 289.0 | 11.3 |
| KWB-40 | 40 | 236.0 | 73.2 | 42.9 | 50.8 | 102.0 | 58.7 | 205.0 | 95.3 | 76.2 | 270.0 | 346.0 | 15.9 |
| KWB-55 | 55 | 263 | 82.6 | 50.8 | 57.2 | 118.0 | 66.8 | 238.0 | 114.0 | 88.9 | 311.0 | 397.0 | 32.2 |
| KWB-75 | 75 | 365.0 | 105.0 | 53.8 | 69.9 | 127.0 | 63.5 | 293.0 | 121.0 | 92.5 | 312.0 | 468.0 | 45.0 |
| KWB-125 | 125 | 419 | 130.0 | 65.0 | 80.0 | 145.0 | 80.0 | 365.0 | 150.0 | 110.0 | 380.0 | 575.0 | 73.0 |
| KWB-200 | 200 | 525.0 | 150.0 | 85.1 | 105.0 | 185.0 | 110.0 | 480.0 | 205.0 | 137.0 | 495.0 | 757.0 | 227.0 |
| KWB-300 | 300 | 615 | 187.0 | 102.0 | 133.0 | 235.0 | 137.0 | 600.0 | 264.0 | 160.0 | 594.0 | 946.0 | 368.0 |
| KWB-400 | 400 | 769.0 | 220.0 | 131.0 | 160.0 | 300.0 | 160.0 | 575.0 | 320.0 | 185.0 | 690.0 | 985.0 | 472.0 |
| KWB-500 | 500 | 847 | 250.0 | 146.0 | 180.0 | 340.0 | 170.0 | 630.0 | 340.0 | 225.0 | 790.0 | 1085.0 | 625.0 |
| KWB-600 | 600 | 915.0 | 275.0 | 158.0 | 200.0 | 384.0 | 185.0 | 700.0 | 370.0 | 247.0 | 865.0 | 1200.0 | 831.0 |
| KWB-700 | 700 | 988 | 300.0 | 167.0 | 215.0 | 376.0 | 200.0 | 735.0 | 400.0 | 270.0 | 940.0 | 1275.0 | 1109.0 |
| KWB-800 | 800 | 1058.0 | 325.0 | 185.0 | 230.0 | 420.0 | 210.0 | 750.0 | 420.0 | 277.0 | 975.0 | 1323.0 | 1368.0 |
| KWB-900 | 900 | 1111 | 350.0 | 198.0 | 250.0 | 430.0 | 220.0 | 757.0 | 440.0 | 293.0 | 1025.0 | 1373.0 | 1559.0 |
| KWB-1000 | 1000 | 1168.0 | 380.0 | 212.0 | 270.0 | 450.0 | 230.0 | 760.0 | 460.0 | 308.0 | 1075.0 | 1405.0 | 1824.0 |
| KWB-1250 | 1250 | 1266 | 430.0 | 232.0 | 300.0 | 533.0 | 265.0 | 930.0 | 530.0 | 323.0 | 1175.0 | 1660.0 | 2588.0 |
| KWB-1550 | 1550 | 1394.0 | 465.0 | 269.0 | 320.0 | 605.0 | 404.0 | 1075.0 | 580.0 | 338.0 | 1255.0 | 1865.0 | 3650.0 |
